Blue Zone CR-Series Calcium Reactors (CR-150 / CR-200 / CR-250 / CR-150 Plus / CR-200 Plus)
Introduction
The Blue Zone CR-Series Calcium Reactors deliver consistent calcium and alkalinity replenishment for reef aquariums ranging from 130 to nearly 800 gallons. Each reactor uses a sealed CO₂ recirculation loop to dissolve aragonite media efficiently, maintaining balanced KH and calcium levels for demanding reef environments.
Built from heavy-gauge cast acrylic with precision-machined PVC fittings, every CR-Series reactor is engineered for quiet, reliable operation. The adjustable DC pump and LCD controller allow fine-tuned flow and CO₂ contact time, giving reef keepers full control over reactor performance.
Model Specifications
| Model | Recommended Tank Volume | Pump | Power | Chamber Diameter | Reactor Volume | Dimensions (L × W × H) |
|---|---|---|---|---|---|---|
| CR-150 | Up to 130 gal (≈ 500 L) | IC-2500 | 25 W | 5.9 in (150 mm) | 2.0 gal (≈ 7.5 L) | 10.2 × 9.1 × 21.7 in (260 × 230 × 550 mm) |
| CR-200 | 200 – 400 gal (≈ 800 – 1500 L) | IC-3000 | 30 W | 7.9 in (200 mm) | 3.6 gal (≈ 13.5 L) | 12.2 × 9.8 × 21.7 in (310 × 250 × 550 mm) |
| CR-250 | 400 – 650 gal (≈ 1000 – 2500 L) | IC-5000 | 45 W | 9.8 in (250 mm) | 5.5 gal (≈ 21 L) | 13.8 × 13.0 × 21.7 in (350 × 330 × 550 mm) |
| CR-150 Plus | 260 – 525 gal (≈ 1000 – 2000 L) | IC-3000 | 30 W | 5.9 in (150 mm) main + 2.8 in (70 mm) sub | 2.3 + 0.5 gal (≈ 8.5 L total) | 13.0 × 11.4 × 21.7 in (330 × 290 × 550 mm) |
| CR-200 Plus | 525 – 790 gal (≈ 2000 – 3000 L) | IC-5000 | 45 W | 7.9 in (200 mm) main + 3.5 in (90 mm) sub | 3.2 + 0.8 gal (≈ 15 L total) | 15.7 × 14.2 × 21.7 in (400 × 360 × 550 mm) |
System Overview
Standard Models (CR-150 / CR-200 / CR-250)
Single-chamber reactors with efficient CO₂ recirculation and uniform media flow. Ideal for reef tanks where simplicity, reliability, and space efficiency matter most.
Highlights:
• Compact footprint for sump installation
• Low CO₂ consumption via closed-loop circulation
• Simple setup and maintenance
• Quiet DC operation with digital controller

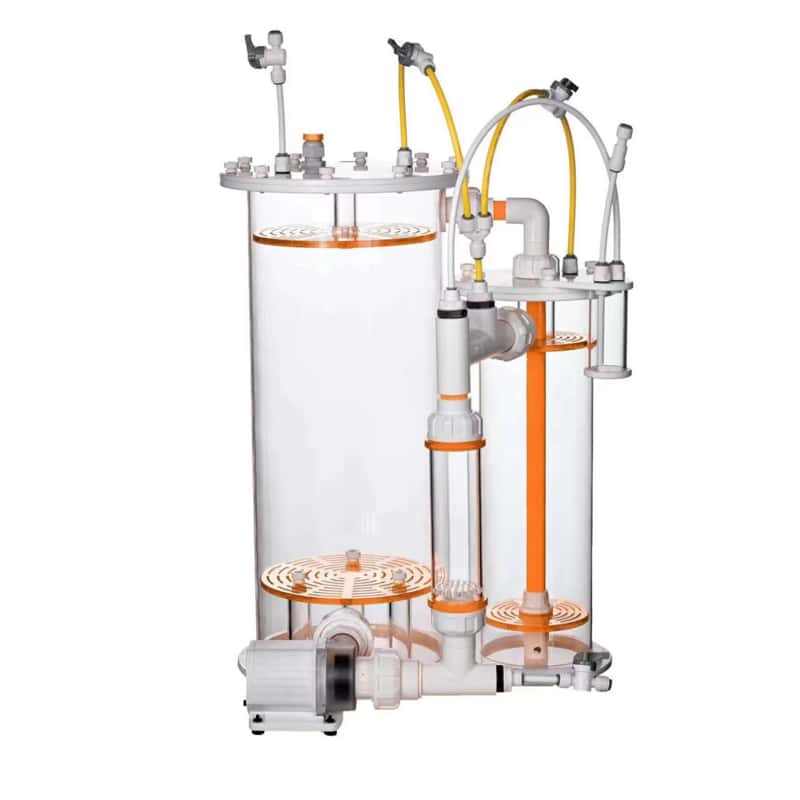

Plus Models (CR-150 Plus / CR-200 Plus)
The Plus versions add a secondary contact chamber that increases CO₂ dwell time and boosts dissolution efficiency. This second stage captures effluent from the main reactor, reducing acidity before discharge and improving stability in high-demand reef systems.
Highlights:
• Extended contact time for higher saturation and stability
• Reduced CO₂ use and longer media life
• Lower effluent acidity entering the sump
• Ideal for automated or SPS-dominant reef tanks
Choosing Between Models
The CR-200 and CR-250 provide outstanding output for reef systems up to ≈ 650 gallons. The Plus models enhance that performance for higher-load or low-maintenance setups, offering longer intervals between media changes and more efficient gas use.
Key Features
• Sealed CO₂ recirculation loop for stable output and reduced gas use
• DC circulation pump with adjustable LCD controller
• Thick cast-acrylic body and CNC-machined PVC lid/base
• Top-loading design for easy access to media
• Integrated bubble counter and effluent valve
• Silent running (< 40 dB)
• Clean plumbing layout with minimal maintenance
Warranty Coverage
1-year limited warranty.
Ships from Blue Zone Aquarium in Northern California with full U.S. warranty coverage. Current delivery time ≈ 2 – 3 weeks.
